* 若文字不易閱讀,請參照CAD檔或手冊。

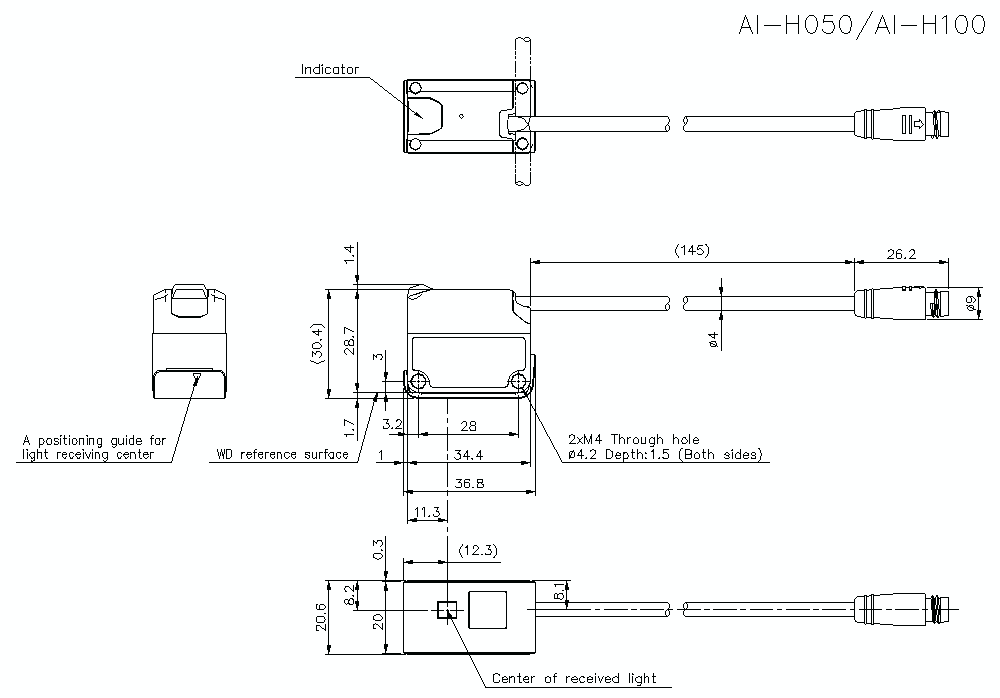

AI-H050/H100 Dimension

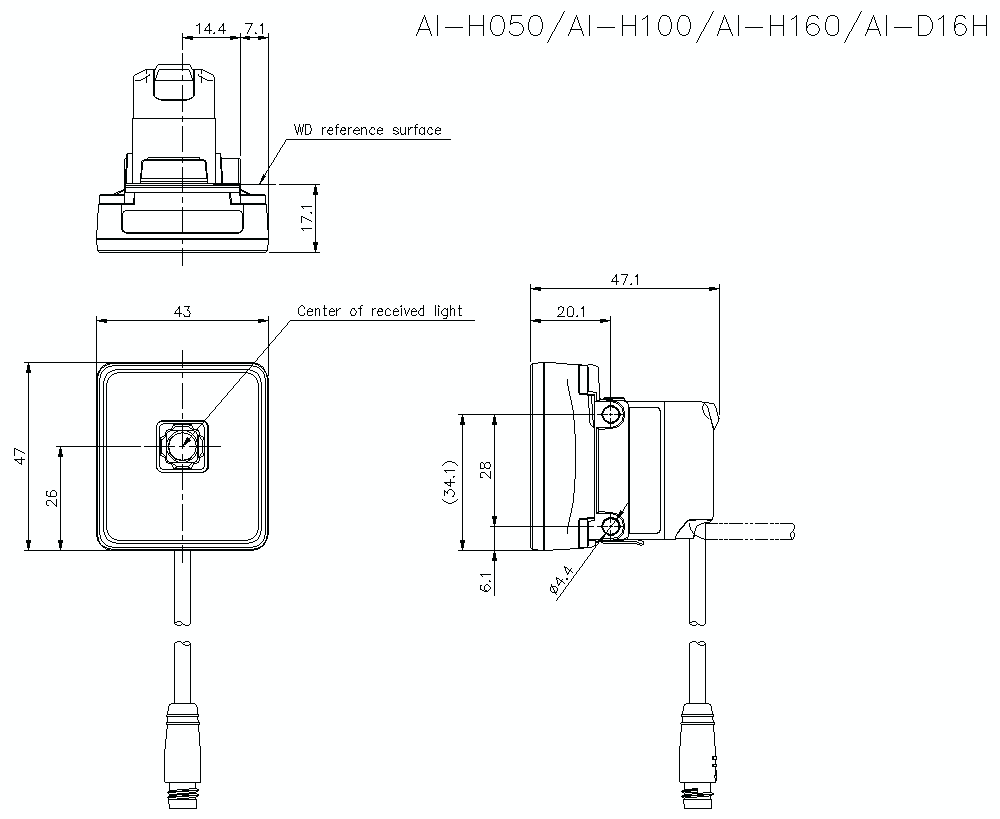

AIH050-160/D16H Dimension


AIH050-100/88104 Dimension

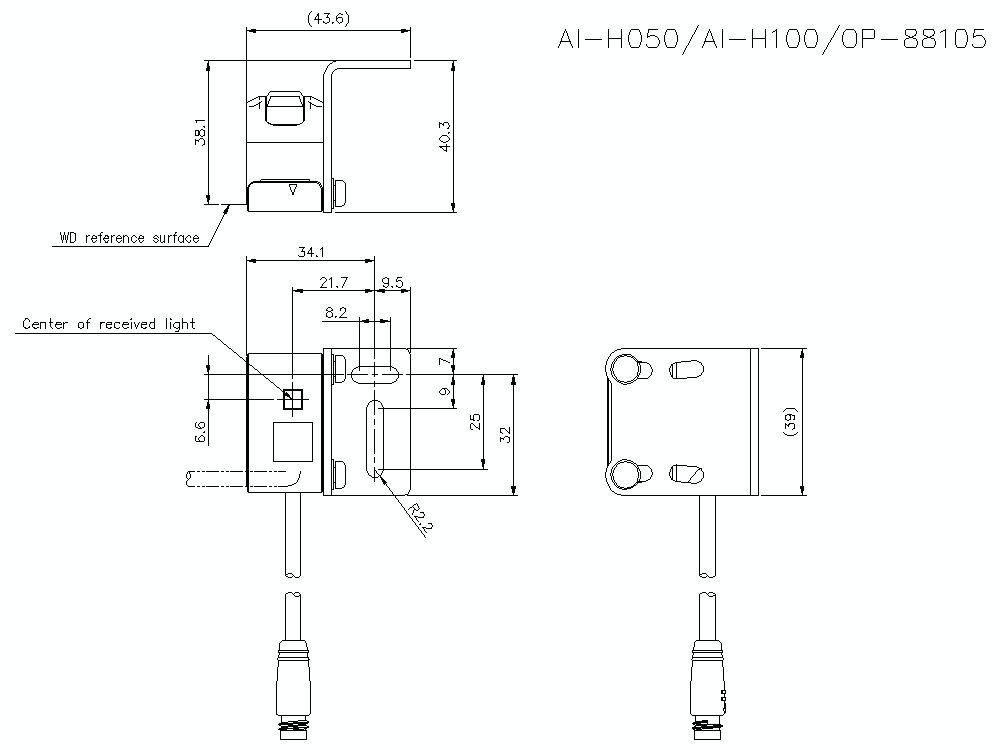

AIH050-100/88105 Dimension

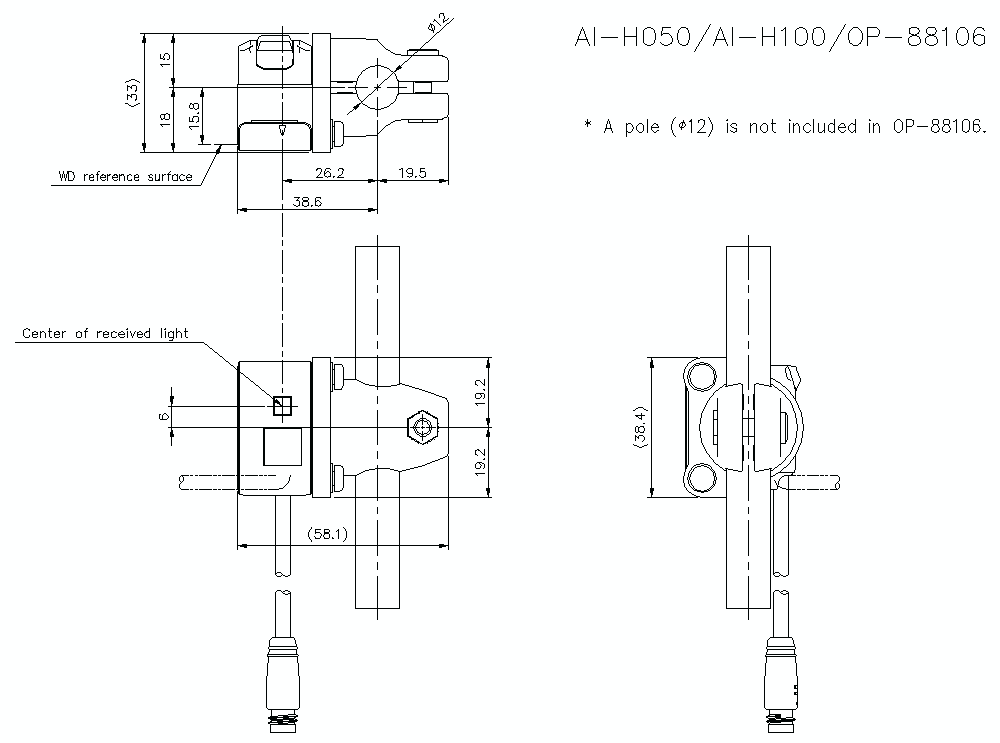

AIH050-100/88106 Dimension

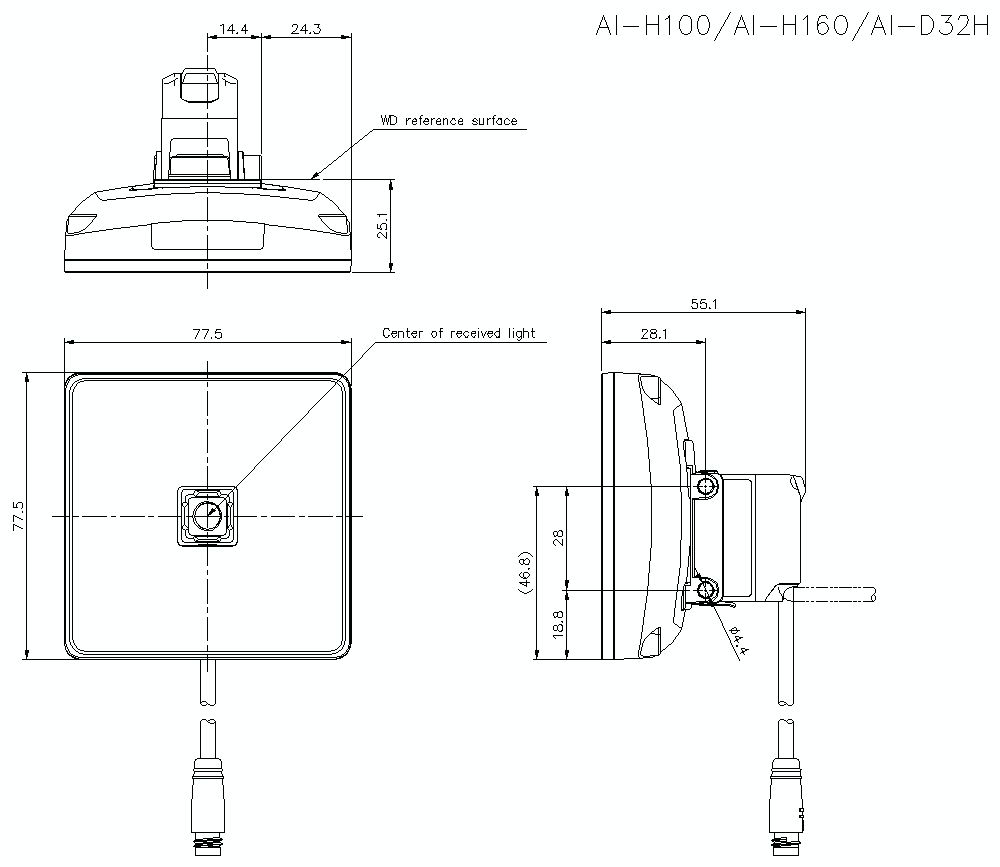

AIH100-160/D32H Dimension

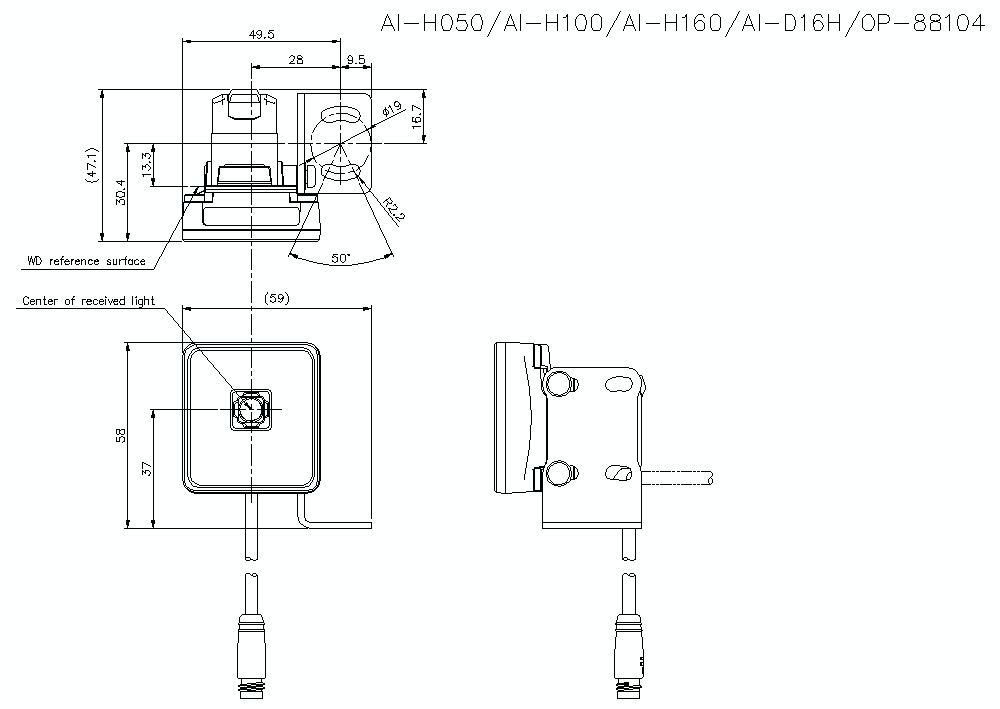

AIH-D16H/88104 Dimension


AIH-D16H/88105 Dimension

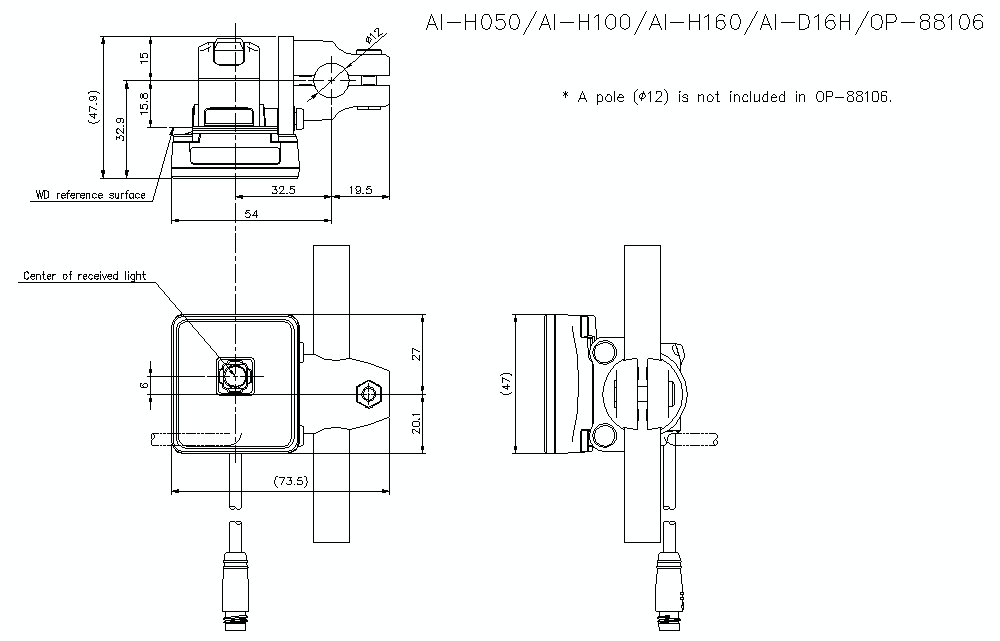

AIH-D16H/88106 Dimension

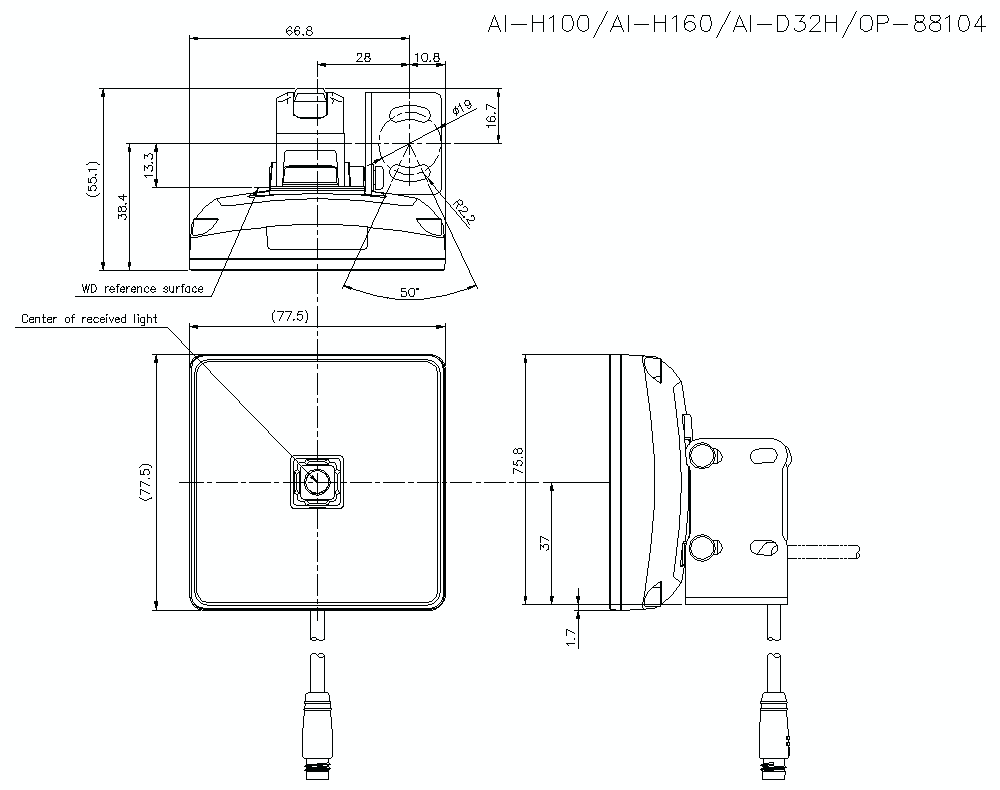

AIH-D32H/88104 Dimension

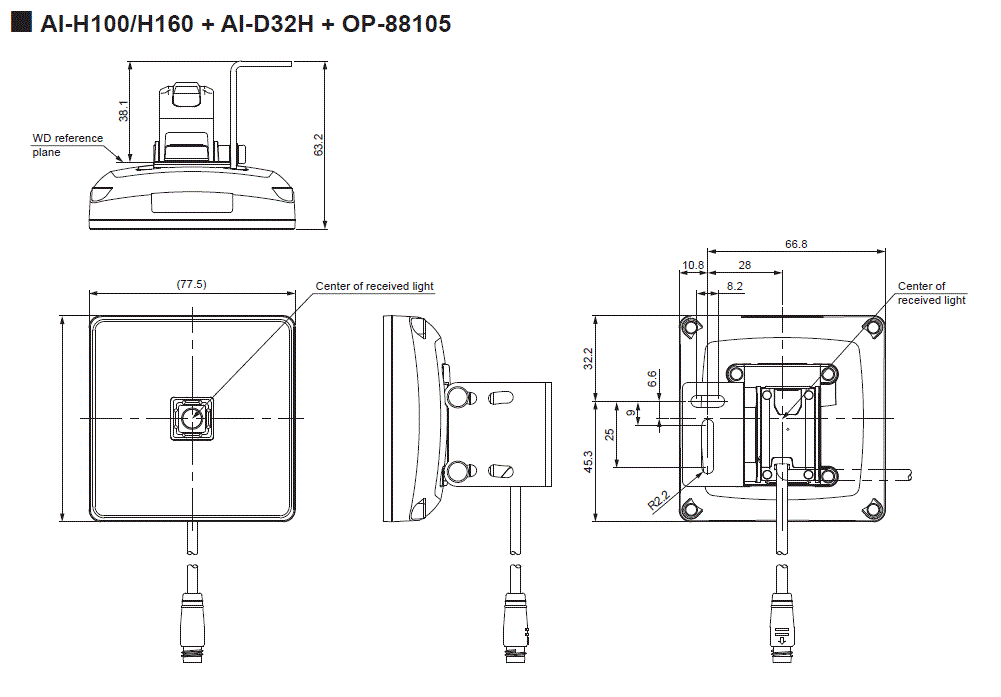

AIH-D32H/OP-88105 Dimension

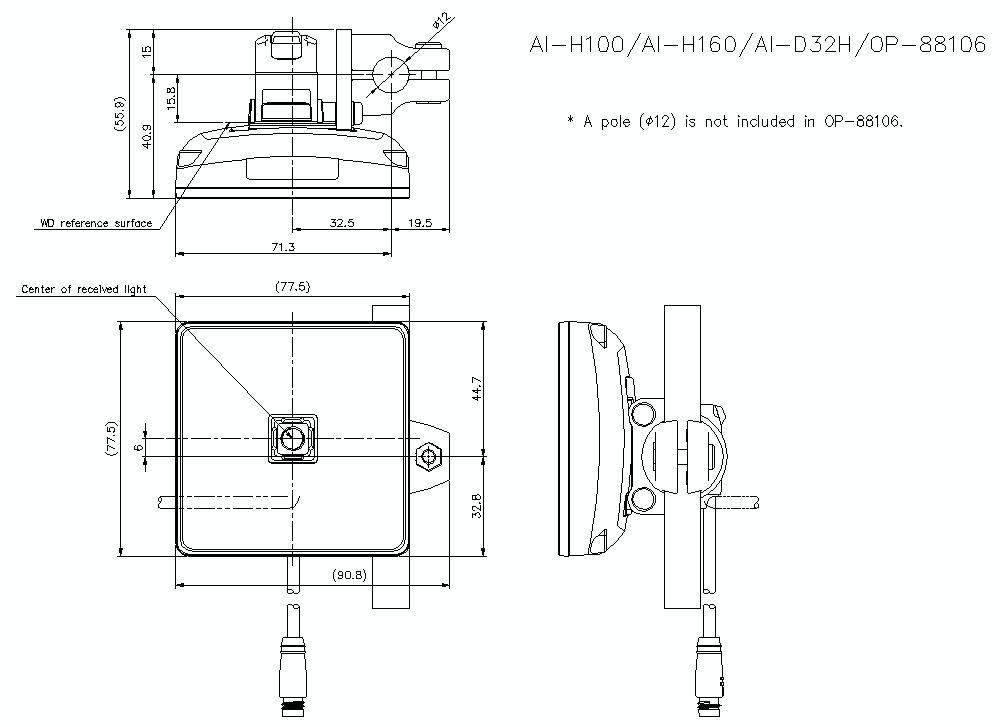

AIH-D32H/88106 Dimension
